Quick Specs

Available Sizes: 46", 66", 86"
Models: OLF46-AM, OLF66-AM, OLF86-AM
46" BTUs: 4,163 BTU (120V) / 6,551 BTU (240V)
66" BTUs: 5,050 BTU (120V) / 7,438 BTU (240V)
86" BTUs: 8,189 BTU (240V Heating Only)
46" Electrical: 1,220W (120V) / 1,920W (240V)
66" Electrical: 1,480W (120V) / 2,180W (240V)
86" Electrical: 1,020W (120V, Flame Only, NO Heat) / 2,400W (240V)
Voltage: 120V / 240V
Wiring: 120V Hardwired or Optional Plug Kit; 240V Hardwired Only
Installation: Built-In Linear Water Vapor Fireplace; Fresh Air Inlet Required
Controls: Bluetooth Remote, Manual Touch Controls, Flame Connect App
Media Included: Driftwood and Acrylic Crystals
Sound: Adjustable Crackling Sound Effect
Warranty: 2-Year Limited Manufacturer Warranty
Manual: Installation & User’s Manual PDF

Dimensions & Framing

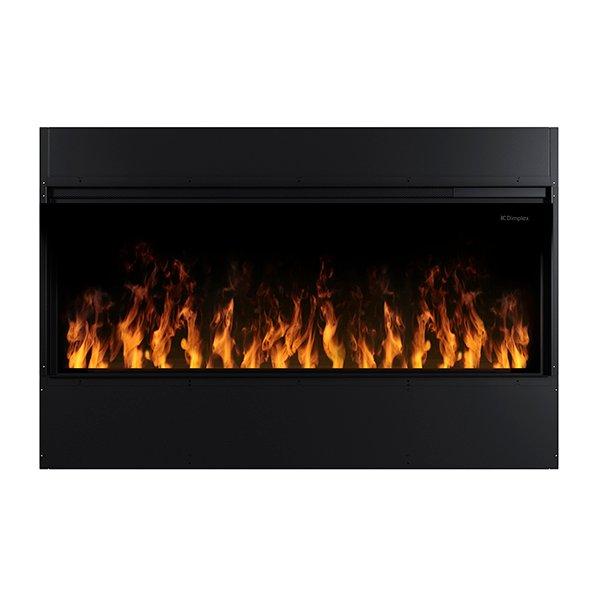

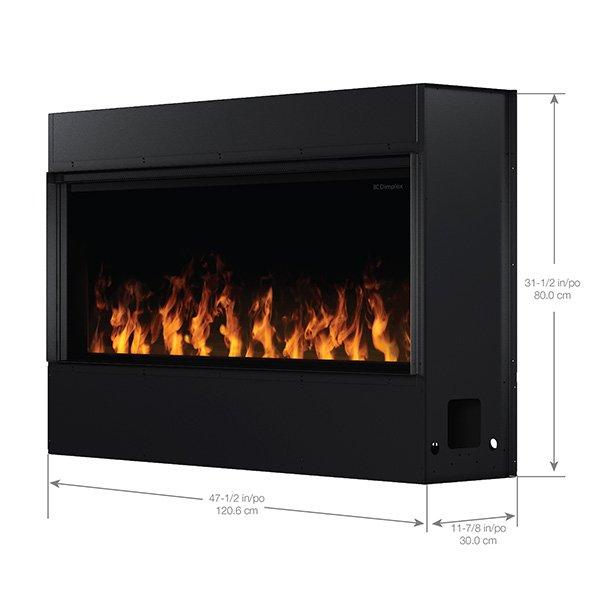

OLF46-AM
Overall Dimensions: 47-1/2"W x 31-1/2"H x 11-7/8"D
Framing Dimensions: 48"W x 32-1/2"H x 12"D

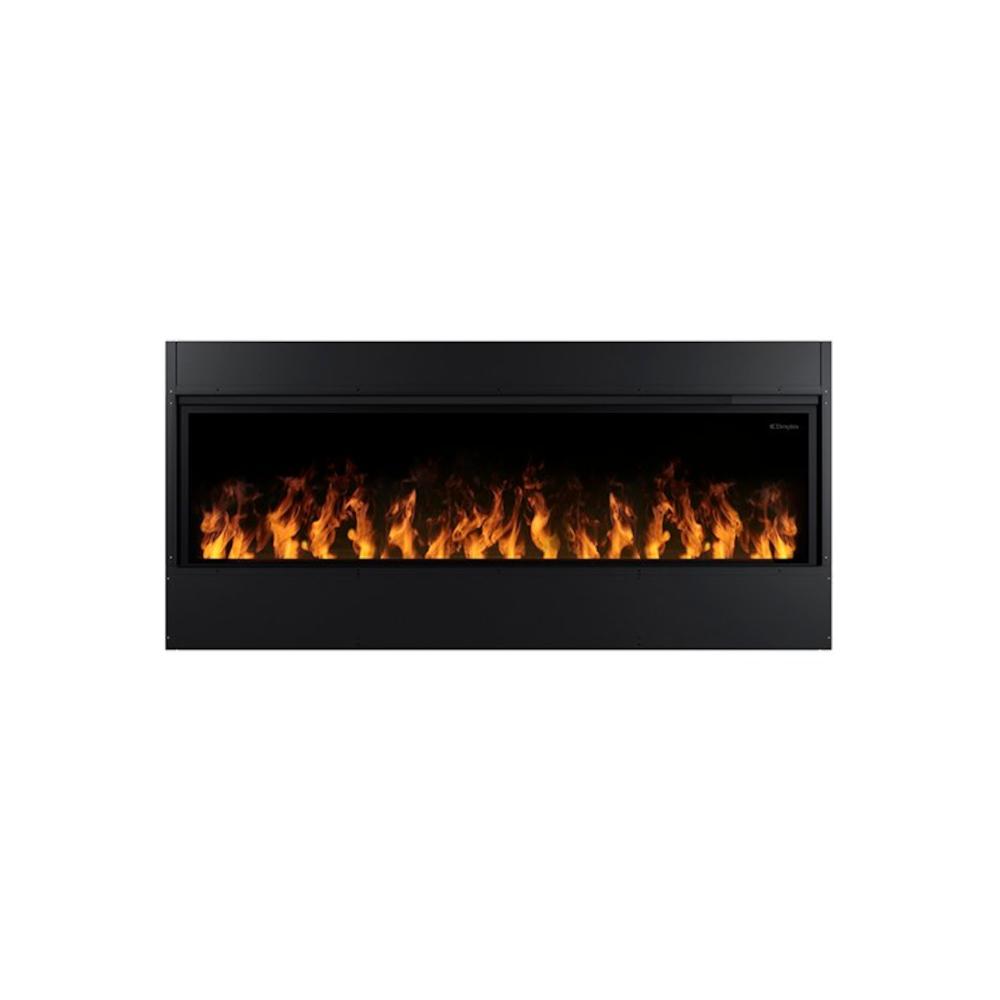

OLF66-AM

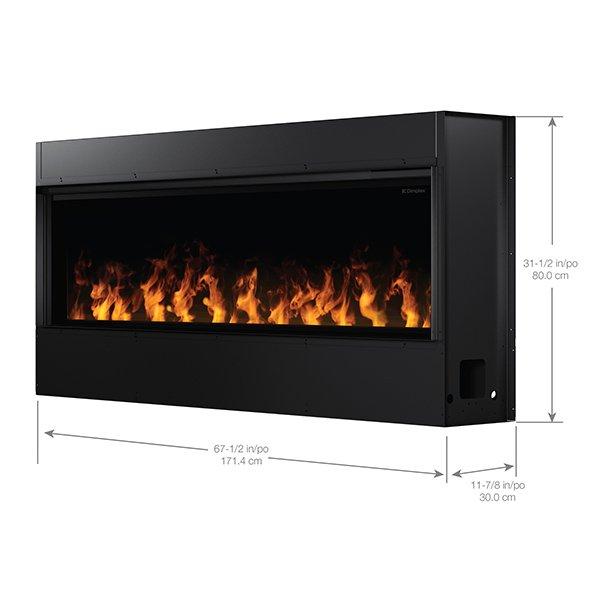

Overall Dimensions: 67-1/2"W x 31-1/2"H x 11-7/8"D
Framing Dimensions: 68"W x 32-1/2"H x 12"D

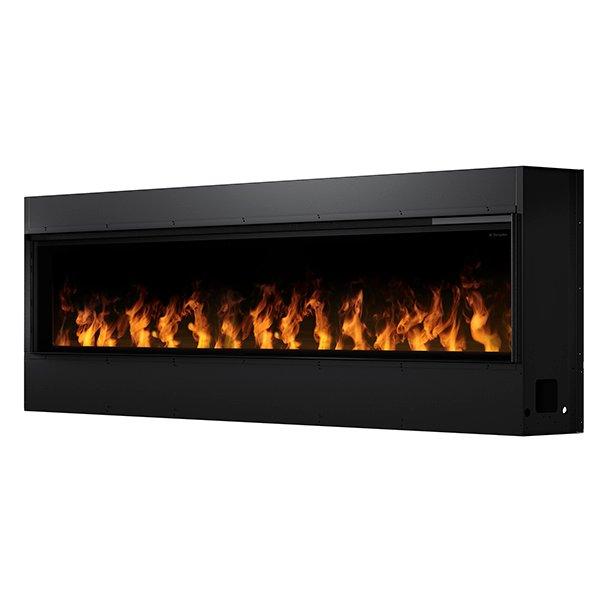

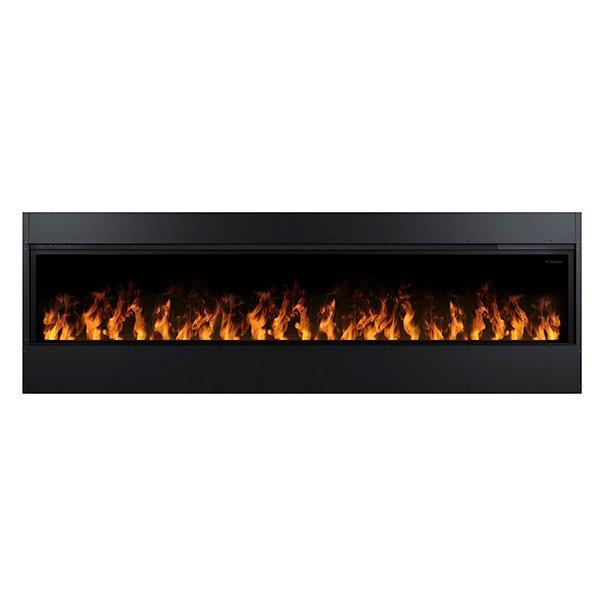

OLF86-AM

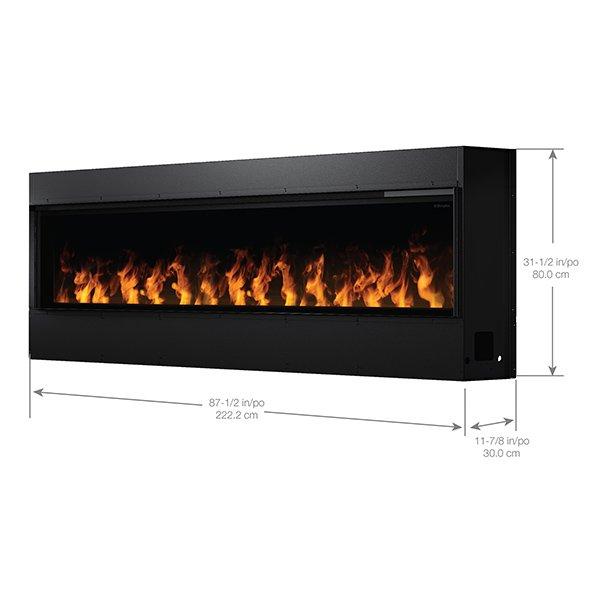

Overall Dimensions: 87-1/2"W x 31-1/2"H x 11-7/8"D
Framing Dimensions: 88"W x 32-1/2"H x 12"D

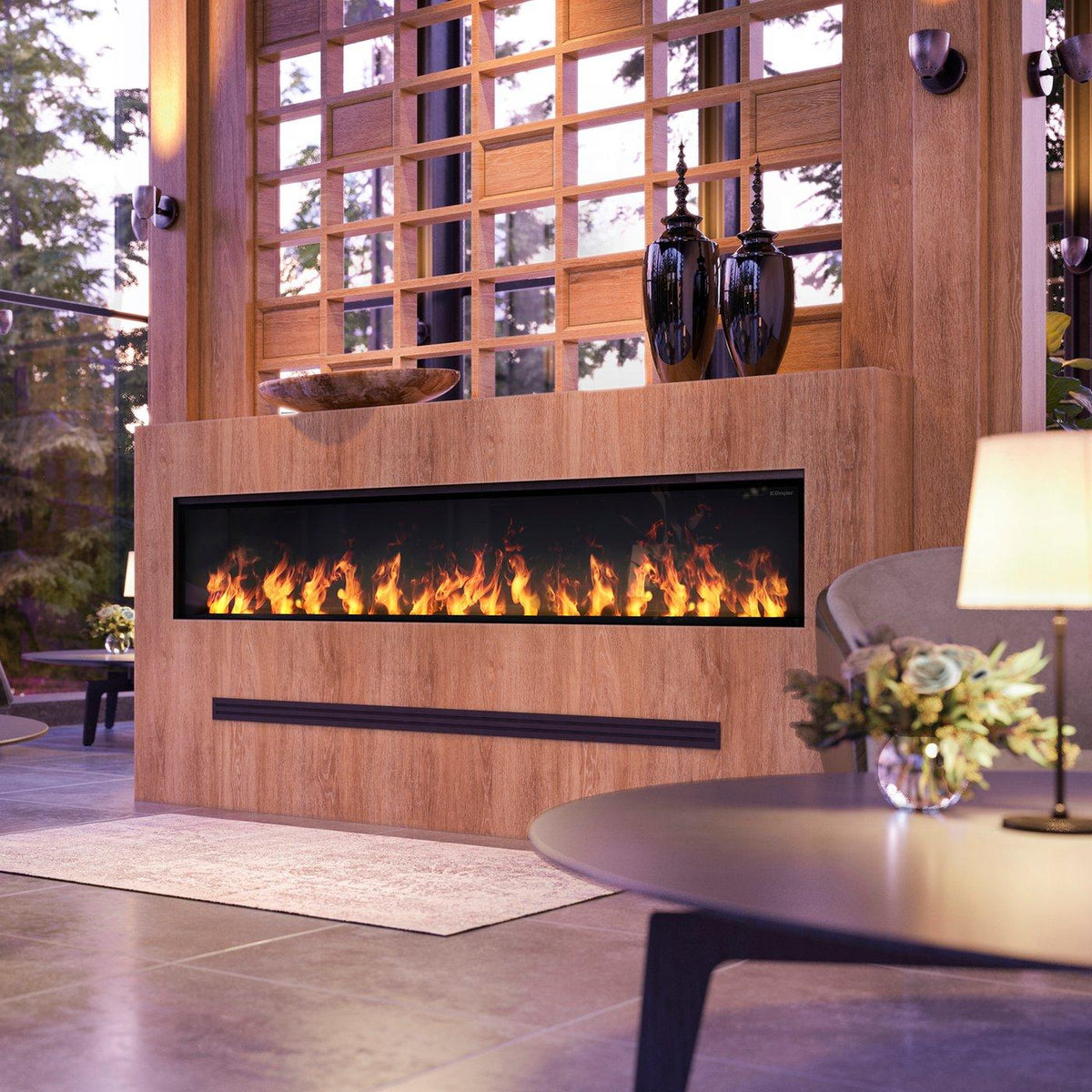

Dimplex Optimyst® Linear Electric Fireplace

Realistic Three-Dimensional Flames. A Seamless Linear Fireplace.

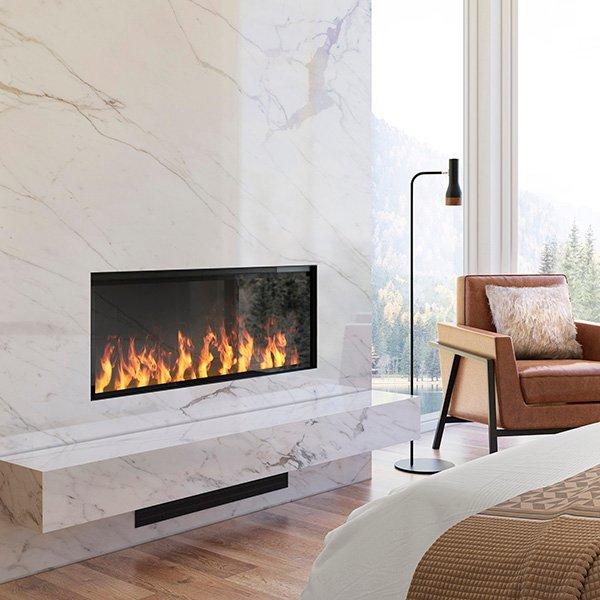

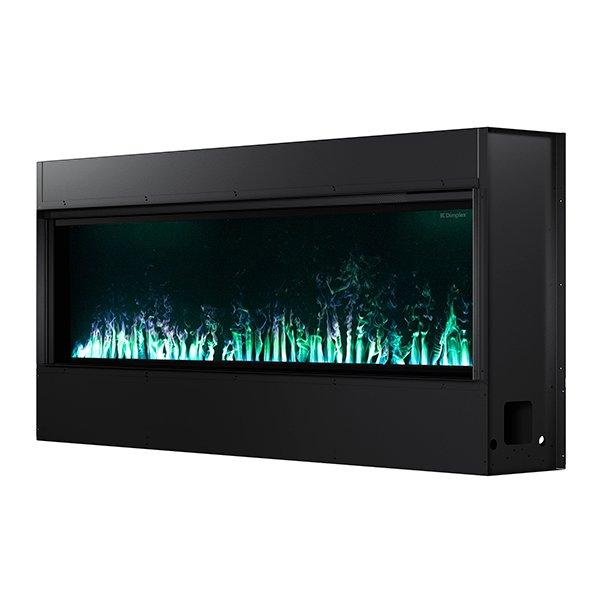

Bring the striking look of real flames into a modern built-in fireplace with the Dimplex Optimyst® Linear. Water vapor and light create a three-dimensional flame effect that rises above the included driftwood and acrylic crystals. Choose from 46-inch, 66-inch, and 86-inch sizes for your space.

Customize the flame intensity and ambient lighting using the included Bluetooth remote, hidden touch controls, or Flame Connect app. Enjoy the visual effect independently of the heater for year-round ambiance.

Perfect For:
✔ Contemporary built-in fireplace walls
✔ Residential and commercial design projects
✔ Wide linear fireplace installations
✔ Water vapor flames without combustion
✔ Year-round fireplace ambiance

Why Choose the Dimplex Optimyst® Linear?

✔ Optimyst® Water Vapor Flames: A three-dimensional effect created with water vapor and light.
✔ Three Sizes: Select the 46", 66", or 86" model.

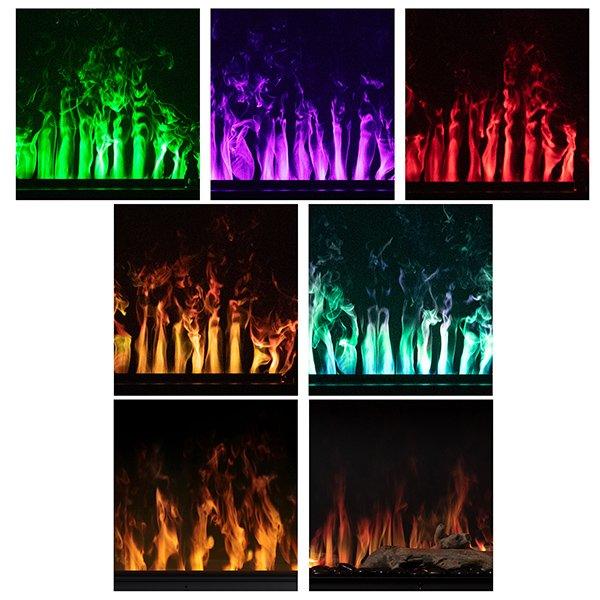

✔ Customizable Lighting: Multiple ambient and flame themes.
✔ Convenient Controls: Bluetooth remote, touch controls, and Flame Connect app.
✔ Crackling Sound: Adjustable audio adds atmosphere.
✔ Included Media: Driftwood and acrylic crystals.

Heating and Electrical Requirements

The 46" and 66" models provide supplemental heat on 120V or 240V connections. The 86" model does not produce heat at 120V; connect it to 240V if heating is required. The optional OLFPLUG power cord kit is suitable for 120V installations only. Refer to the installation guide and a qualified electrician for wiring requirements.

Built-In Installation, Water Supply and Airflow

Optimyst® Linear is designed for a framed built-in installation. A fresh air inlet is required beneath the firebox: at least 80 sq. in. for 46", 120 sq. in. for 66", and 160 sq. in. for 86". A direct water connection is recommended for regular use. The optional plumbing kit and optional air-intake grilles can be selected above; the grille add-on includes the manufacturer-recommended quantity for your chosen size.

Compatible Decorative Media and Log Sets

Compatible decorative media is available separately. The Dimplex price list includes tumbled glass (TMBGL), large river rocks (LRVRRK), small river rocks (SRVRRK), large black rocks (BLKRK), and medium, large, and extra-large acrylic crystals (MDACR-CLR, LGACR-CLR, XLACR-CLR). Optional log-set styles include split logs (NSWLG), beach driftwood (BDWDS), driftwood (DRFWD), chunky driftwood (CDWD1 and CDWD2), and thin split logs (TSWLG). Quantity requirements vary by fireplace size; contact us for compatible quantities and pricing.
